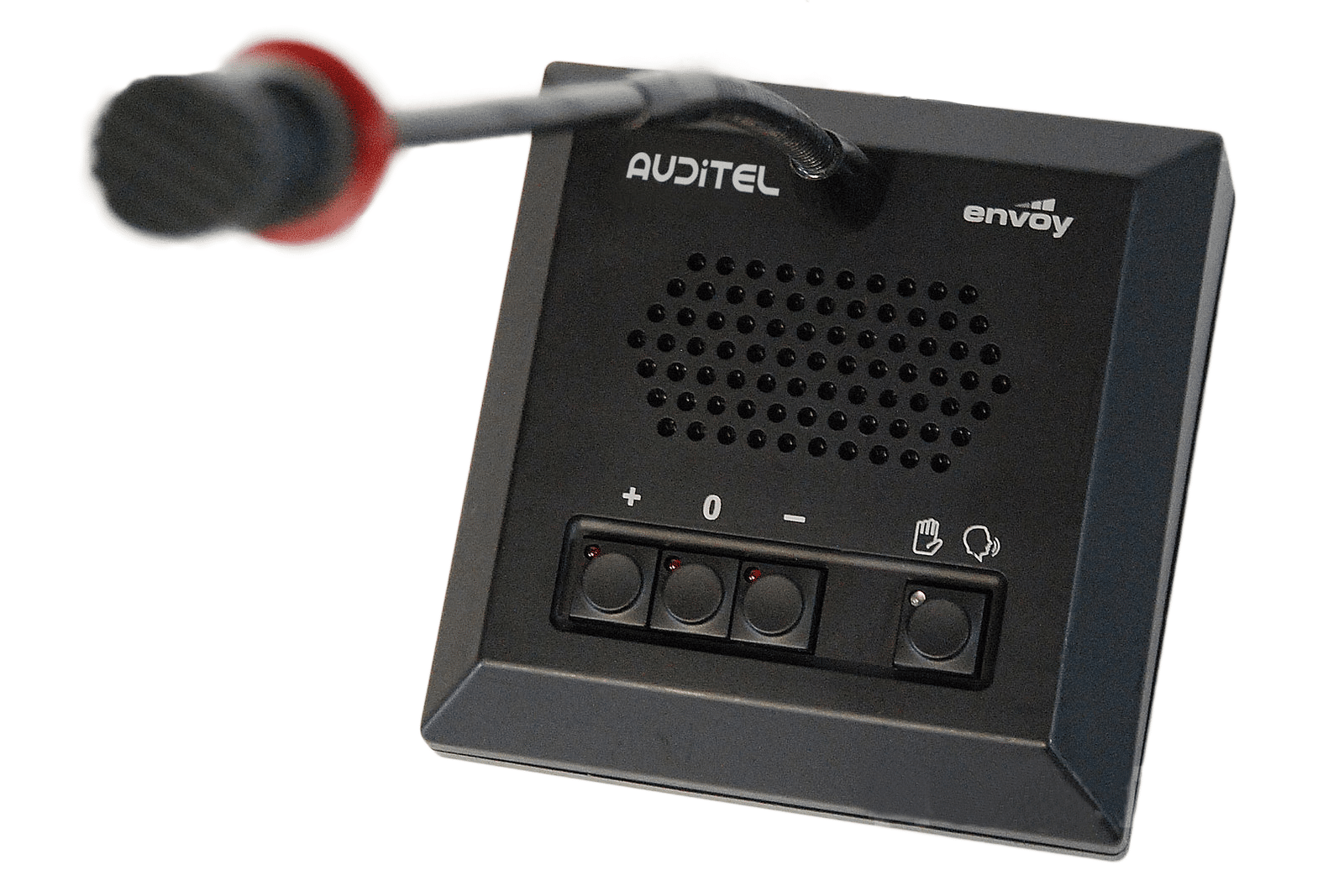

Portable Microphone Unit DDU103P
Portable Microphone Unit DDU103P
A true market leader in simple conference systems, the Envoy Portable is an ‘off the shelf’ microphone unit which boasts the following functionality:
- Fixed EM-2 gooseneck (30cm as standard, custom lengths available)
- Request/Talk button with LED indicator
- High-quality loudspeaker
- 3-way Electronic Voting buttons with LED indicator (+/0/- [yes/no/abstain])
Connects via daisy-chain to the DSC100 like any Envoy system to provide up to 256 units at one time. All units come with a captive Envoy extension cable (EX-x), 2m as standard, but custom lengths are available. The Chair version (CDU103P) does not have an additional Priority button, but instead replaces the Delegate’s request button with a yellow button with LED indicator.
- Rugged, robust plastic mould casing is optimised for portable usage
- Flexible gooseneck and captive cable can be wrapped around unit, allowing for space-saving storage
- Lightweight with sturdy weighted base
- Voting buttons double up as independent local gain control
- Superior sound with feedback suppression, loudspeaker mutes when mic is live
- 1 x 7-pin DIN locking connector for daisy-chain
- Captive 2m Envoy extension cable (EX-2)
- Delegate FIFO mode or central operation by connecting to ACCS
- Size (HxWxD) – 50x140x140mm
- Weight – 0.5kg
- DDU103P Envoy Portable Delegate Microphone Unit (with 30cm fixed gooseneck)
- CDU103P Envoy Portable Chairman Microphone Unit (with 30cm fixed gooseneck)
