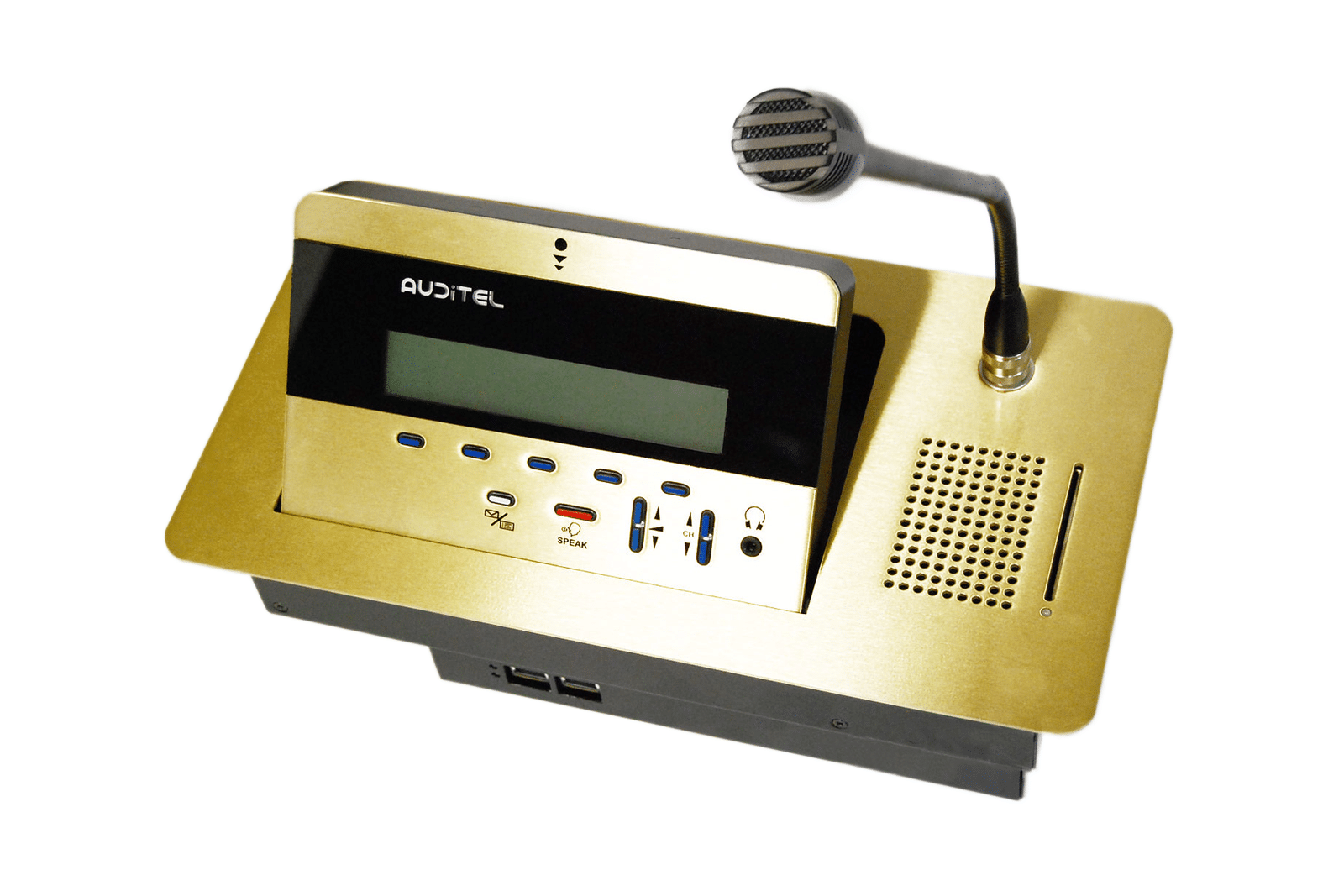

Microphone Unit (Fliptop) DDMU/DCMU-FT
Microphone Unit (Fliptop) DDMU/DCMU-FT
Flip-Top design microphone unit for the Diplomat conference system, available with the following features:
- Request button (included as standard)
- Loudspeaker (included as standard, single or dual)
- Electronic Voting (5-button or 3-button)
- Card-Reader
- Channel Selector (single or dual)
- USB charging
- Biometric Fingerprint Recognition
- Priority button for Chair unit (DCMU-S)
- LCD Display
Available extras:
– 3V 3-button Electronic Voting
– 5V 5-button Electronic Voting
– C Card-Reader
– 1LP Single Channel Selector (comes with basic display)
– 2LP Dual Channel Selector (comes with basic display)
– F Biometric Fingerprint Scanner
E.G. DDMU-FT-5VC1LPF = Diplomat Delegate Microphone Unit with 5-button Electronic Voting, Card-Reader, Single Channel Selector, Fingerprint Scanner.
- Component part of the Diplomat conference system
- Flexible installation design
- Ergonomic silent ‘soft-touch’ buttons
- Sturdy heavy-duty mild-steel backbox with rubber feet
- Titled faceplate for ergonomic UI experience
- Custom finishing/printing available on request
- Backlit LCD display (125mm x 25mm)
- RJ45 I/O with LED indicators; daisy-chains into the DNS loop
- 8-pin DIN microphone socket for DM-1 series gooseneck with screw-lock connecting collar
- RFID card-reader slot with LED indicator
- Faceplate approx. dimensions: 240mm x 120mm, can vary dependent on custom design requirements
- Backbox approx. dimensions W230mm x D100mm x H60mm [rear]/40mm [front], can vary dependent on custom design requirements
- DDMU-FT-x Diplomat Delegate Microphone Unit with LCD, loudspeaker & request button
- DCMU-FT-x Diplomat Chairman Microphone Unit with LCD, loudspeaker & request button
